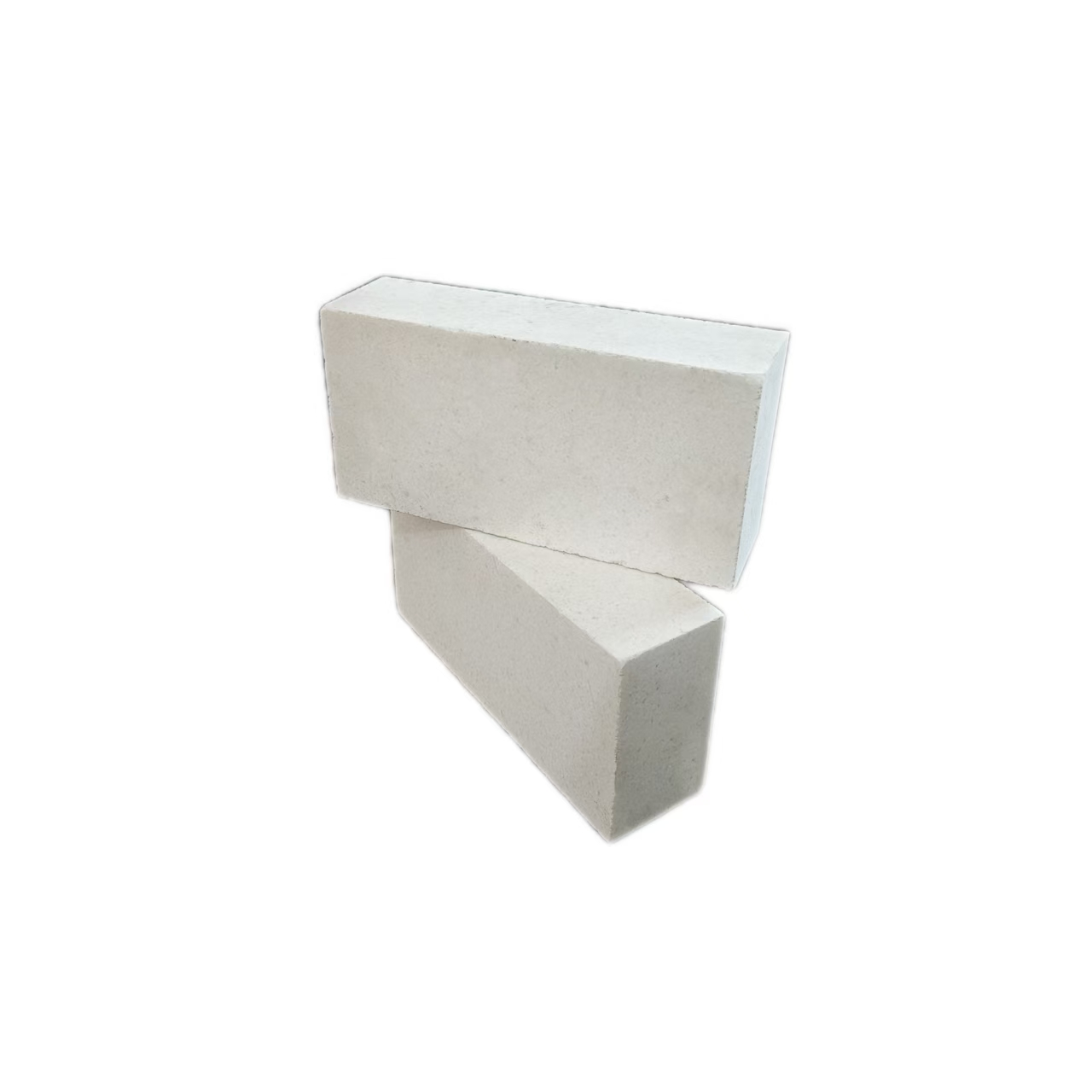

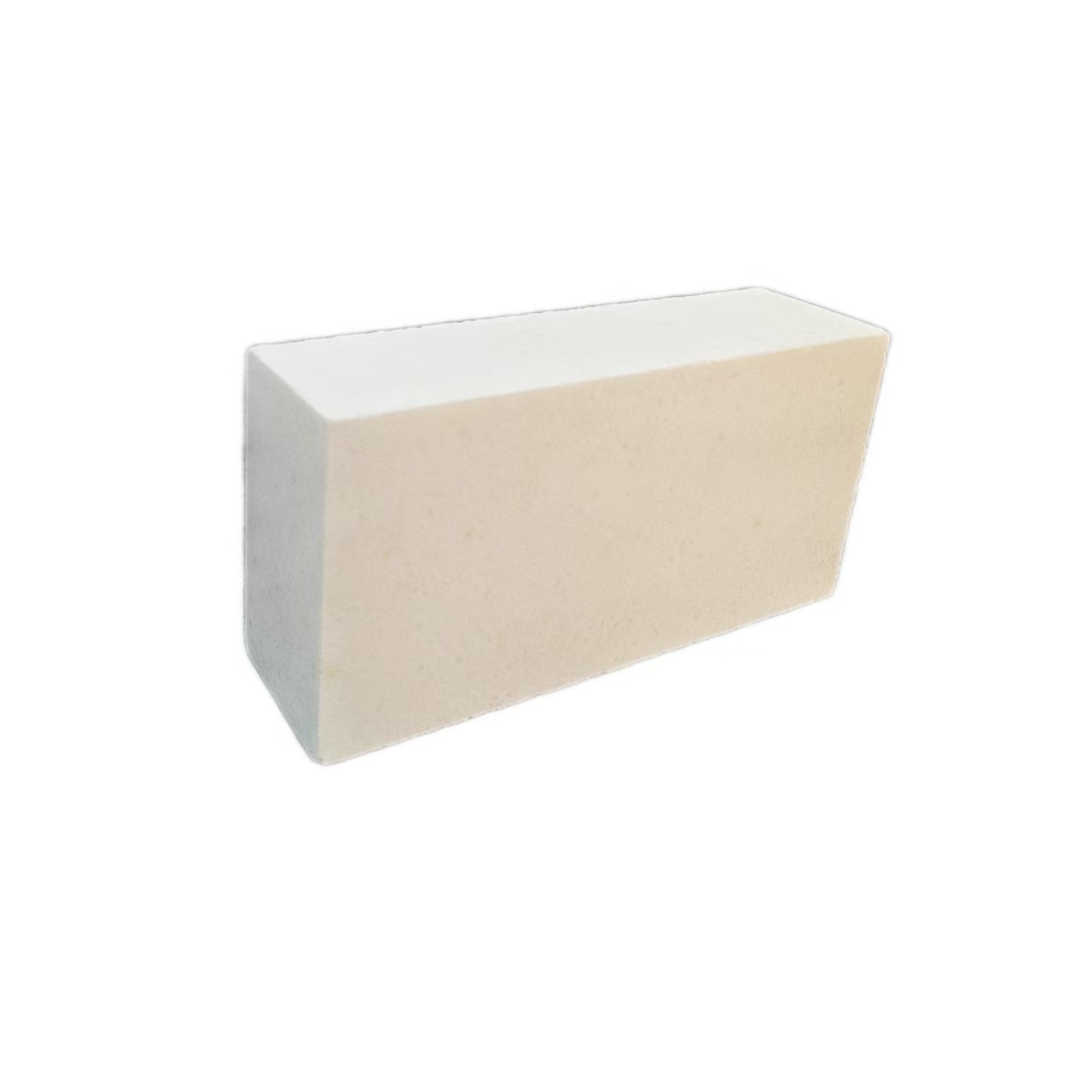

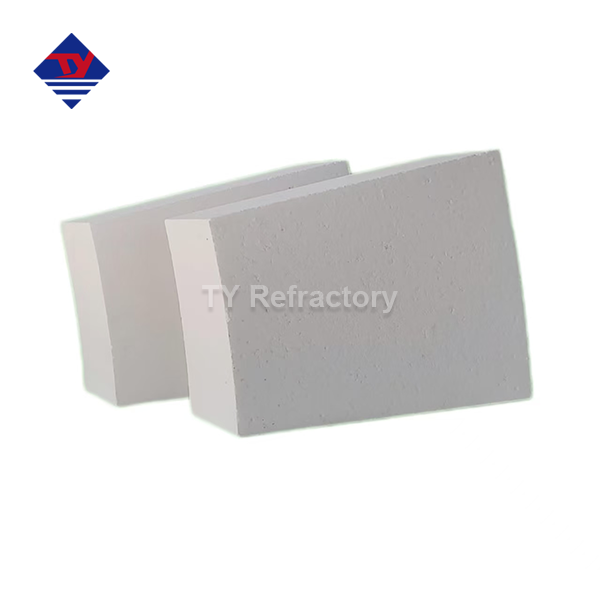

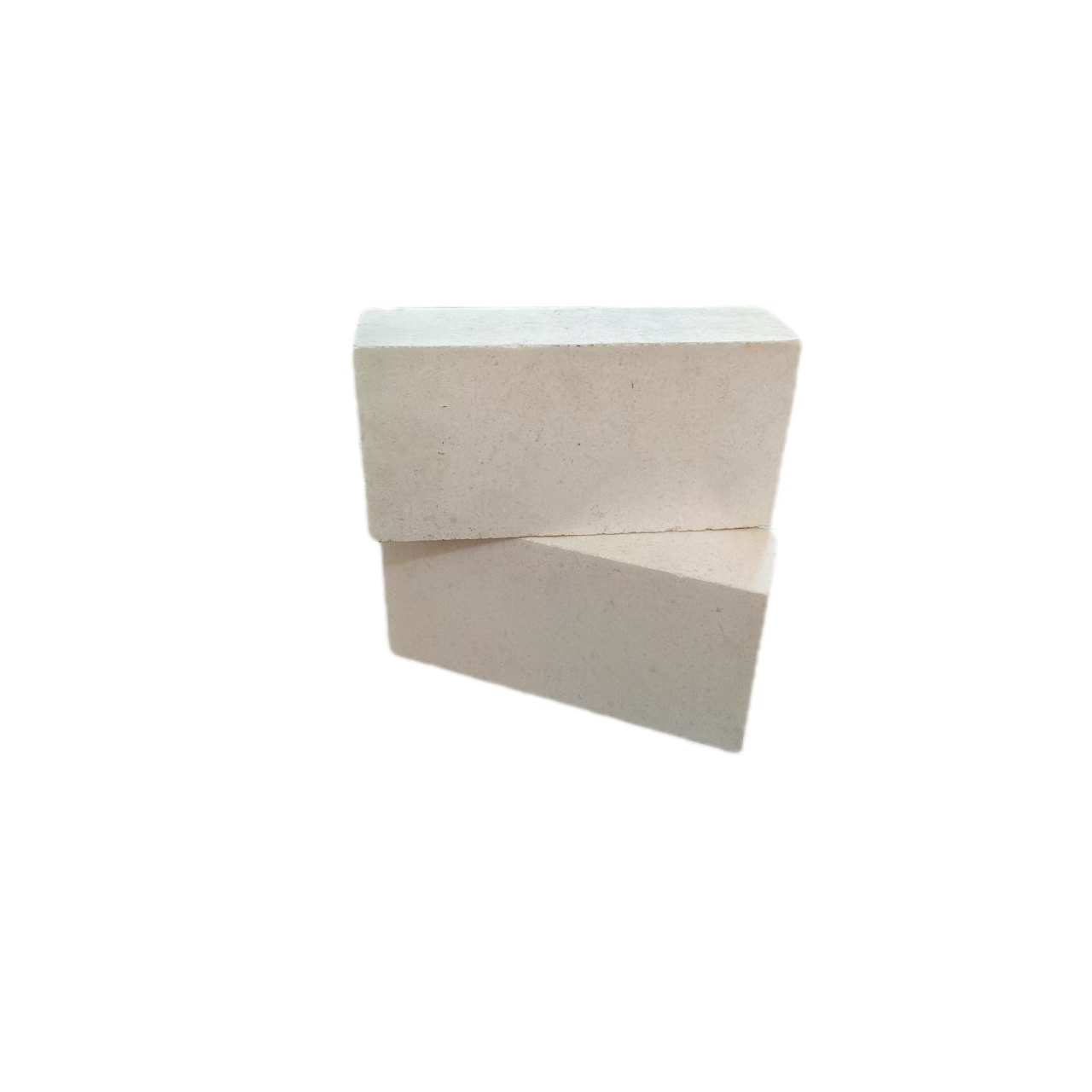

Corundum Mullite Refractory Brick
Raw Material:Plate-shaped corundum, high-purity electric fused corundum
Advantage:The high-temperature performance,(refractoriness under load, high-temperature bending resistance, and permanent linear changes) is better
Application:ceramic cup and ceramic pad of blast furnace
Providing customized services from product selection to project construction
Corundum Mullite Refractory Brick: Engineered for Extreme Performance
When your furnace operates above 1650°C, you need materials that won't let you down. Corundum Mullite Refractory Brick from TY Refractory delivers exactly that. Built from plate-shaped corundum and high-purity electric fused corundum, these bricks achieve exceptional refractoriness under load (RUL >1650-1700°C), superior high-temperature bending resistance, and minimal permanent linear change. With Al2O3 content ranging 75-92%, bulk density of 2.8-3.1 g/cm³, and cold crushing strength exceeding 80MPa, our bricks provide proven reliability for blast furnace ceramic cups and ceramic pads. Backed by TY Refractory's 30+ years of manufacturing expertise and over 20 patents, you're choosing a partner trusted by major steel groups worldwide.
Why Choose Our Corundum Mullite Bricks?
You face real challenges in your operations. Premature lining failure. Thermal shock cracking. Slag erosion eating through your investment.
Our product solves these problems through intelligent material design.
The secret lies in the microstructure. We create an interlocking network of acicular mullite crystals reinforced with dense corundum particles. This unique combination gives you the best of both worlds: the high-temperature strength of corundum with the superior thermal shock resistance of mullite.
Key Performance Advantages
Temperature Solidness You Can Trust
Your heater doesn't work at consistent temperatures. Fast variances crush ordinary refractories. Our bricks include a moo warm development coefficient (around 5.3 x 10^-6/°C), significantly lessening spalling hazard amid temperature cycling.
Chemical Resistance That Lasts
Aggressive slag and heater gasses continually assault your linings. We entirely control Fe2O3 substance underneath 0.5%, anticipating flux-induced corruption. Our bricks keep up basic keenness in both acidic and unbiased slag situations, as well as lessening airs wealthy in CO and H2.
Structural Judgment Beneath Pressure
High-temperature crawl causes disastrous disappointment. Our refractoriness beneath stack surpasses 1700°C, guaranteeing your lining keeps up its shape indeed beneath extraordinary warm weight.
Technical Specifications
| Property | Value | Test Standard |
|---|---|---|
| Al2O3 Content | 75-92% | XRF Analysis |
| Bulk Density | 2.8-3.1 g/cm³ | ASTM C20 |
| Apparent Porosity | <18% | ASTM C20 |
| Cold Crushing Strength | >80 MPa | ISO 18913 |
| Refractoriness Under Load | 1650-1700°C | ASTM C16 |
| Thermal Expansion Coefficient | ~5.3 x 10^-6/°C | - |
| Max Operating Temperature | 1650-1750°C | Continuous Service |
| Fe2O3 Content | <0.5% | XRF Analysis |
Primary Applications

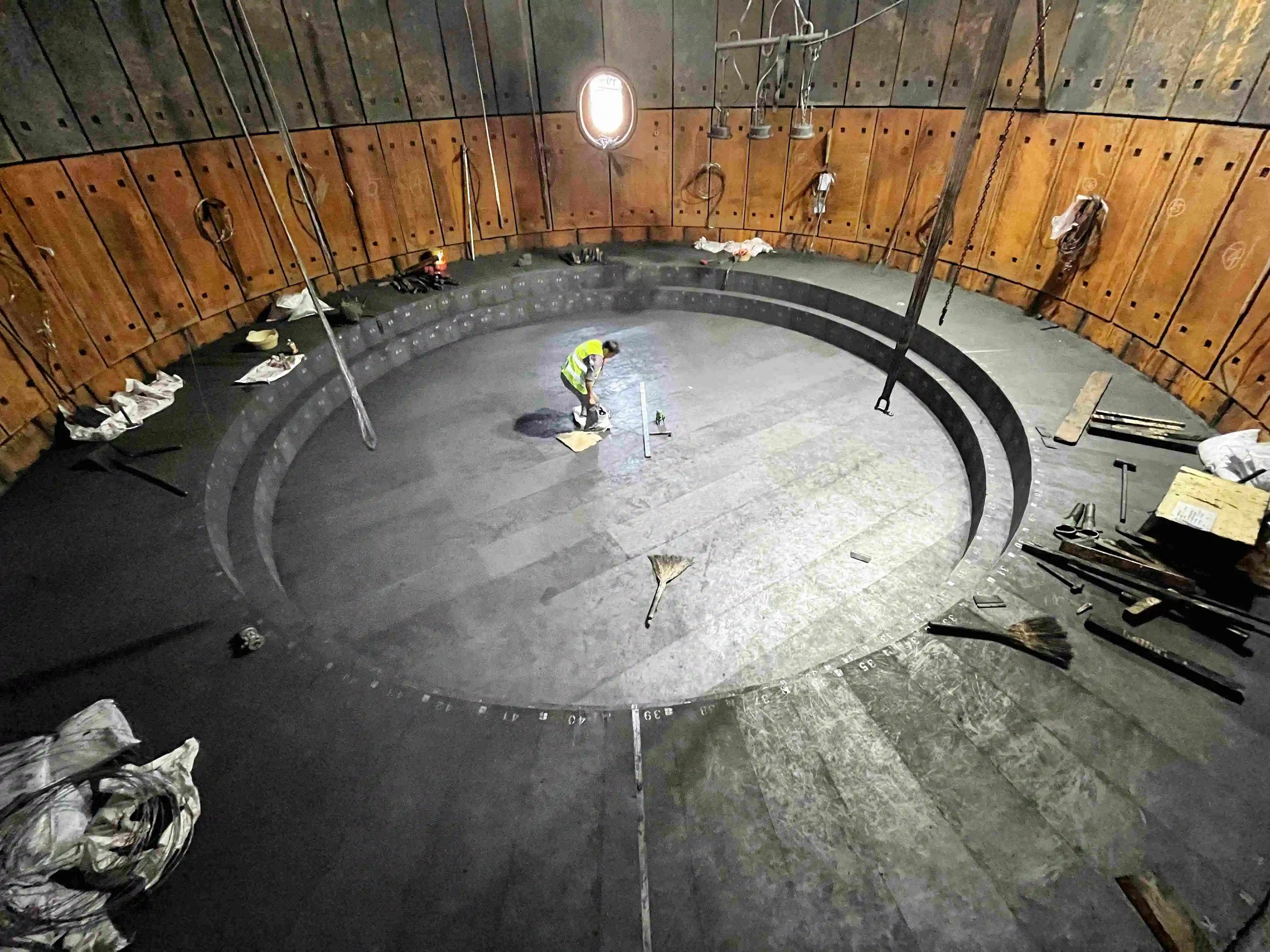

Blast Furnace Critical Zones
Our Corundum Mullite Refractory Bricks excel in ceramic cups and ceramic pads where conventional materials fail. The micro-crack toughening mechanism prevents the dreaded "Elephant's Foot" erosion pattern, extending your campaign life significantly.
High-Temperature Industrial Furnaces
From shaft furnaces to rotary kilns, our materials perform reliably in environments where others crack and spall.
Our Manufacturing Excellence
TY Headstrong isn't fair another provider. We're your specialized partner.
Since 1986, we've been culminating headstrong arrangements. Our collaboration with LuoYang Hard-headed Inquire about College and our urgent part in Shanghai Baosteel's localization extend demonstrate our specialized capability.
We hold ISO 9001:2015, ISO 14001:2016, and OHSAS 18001:2011 certifications. Our provincial-level R&D Center persistently innovates, ensured by over 20 patents.
Complete Lifecycle Support
We do not fair offer bricks. We give comprehensive design-construction-maintenance administrations. Our specialized group offers 24/7 bolster, minimizing your downtime when you require offer assistance most.

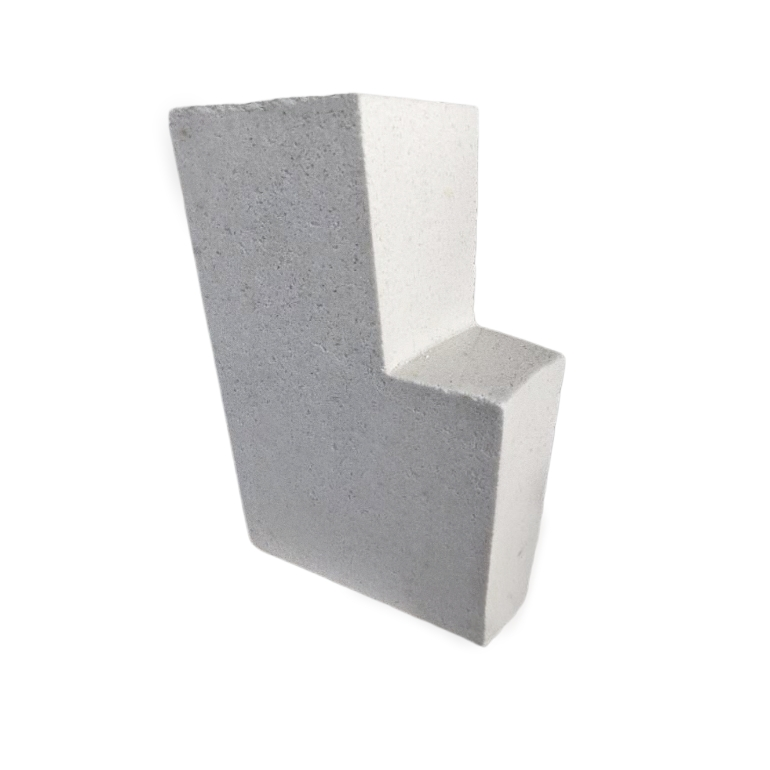

From item determination through extend development, we customize arrangements for your particular necessities. Custom shapes? We'll create them with dimensional accuracy inside ±1mm resistances, regularly in 4-6 weeks.
Rigorous Quality Control
Every brick undergoes strict inspection before it reaches you:
- Chemical composition analysis via XRF ensures consistent Al2O3 purity
- Bulk density and porosity testing verifies densification levels
- Creep resistance testing measures deformation at 1550°C for 50 hours
- Thermal shock resistance through water quenching cycles
- Laser-guided dimensional measurement guarantees precise fitting
Frequently Asked Questions
Q: Why choose our bricks over pure corundum bricks?
A: Pure corundum offers higher refractoriness, but our mullite phase delivers significantly better thermal shock resistance. You get fewer cracks and longer service life during temperature fluctuations.
Q: What's the maximum safe operating temperature?
A: Depending on the grade, you can safely operate between 1650°C and 1750°C in continuous service.
Q: How does iron content affect performance?
A: High iron acts as a flux, lowering the eutectic point and reducing chemical resistance. We keep Fe2O3 below 0.5% through rigorous quality control.
Q: Can these bricks handle reducing atmospheres?
A: Absolutely. They're highly stable in CO, H2, and other reducing environments common in petrochemical gasifiers.
Q: What about custom shapes and lead times?
A: Custom shapes require 4-6 weeks for production and quality verification. This careful process prevents internal micro-cracks that could compromise performance.
Trusted Worldwide
Major steel groups across China—including Baowu, CITIC Special Steel, and Shagang—rely on our refractories. We export successfully to Russia, India, Turkey, Vietnam, and beyond.
Our products prove themselves through multiple generations of furnace operations. When you choose TY Refractory, you're choosing reliability tested in the world's most demanding environments.
Contact Us
Ready to extend your Corundum Mullite Refractory Brick furnace campaign life? Contact us at baiqiying@tianyunc.com for customized refractory solutions.
