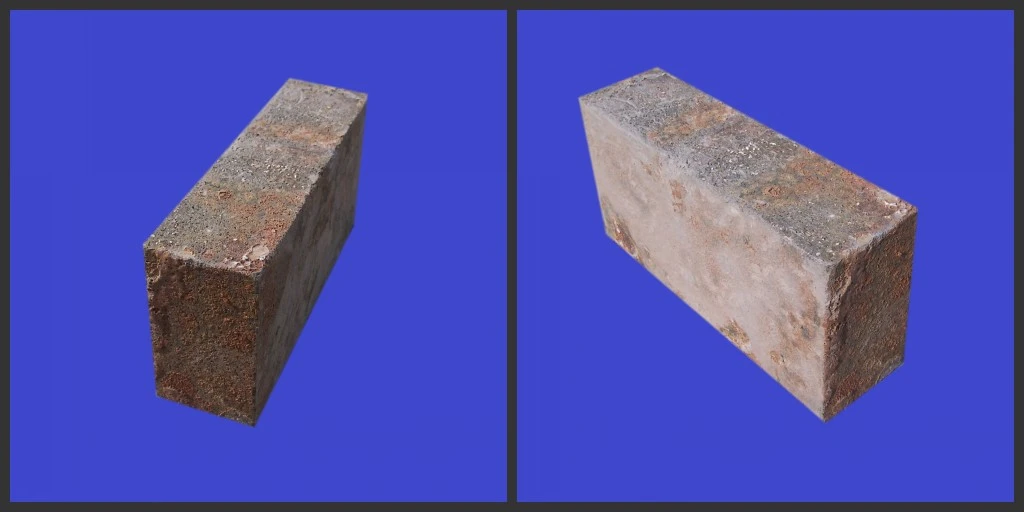

What are the mechanical properties of Zirconium SiC bricks?

Zirconium SiC Brick represents one of the most advanced refractory solutions in the industrial market today, offering exceptional mechanical properties that make it ideal for demanding high-temperature applications. These specialized bricks combine the remarkable properties of zirconium compounds with silicon carbide to create a material that exhibits superior strength, thermal shock resistance, and chemical stability. The mechanical properties of Zirconium SiC Brick are particularly impressive, featuring high compressive strength exceeding 100 MPa, flexural strength above 30 MPa, and exceptional resistance to deformation under load at elevated temperatures. These properties enable these bricks to withstand the extreme conditions found in blast furnaces, hot-blast stoves, and other high-temperature industrial environments while maintaining structural integrity and performance.

Key Mechanical Characteristics of Zirconium SiC Bricks

Compressive and Flexural Strength Analysis

Zirconium SiC Brick demonstrates remarkable compressive strength properties that set it apart from conventional refractory materials. Laboratory testing consistently shows that these bricks can withstand pressures exceeding 100 MPa without structural failure, making them ideal for load-bearing applications in industrial settings. This exceptional strength comes from the unique microstructure formed during the manufacturing process, where silicon carbide grains are bonded with zirconium compounds to create a dense, cohesive matrix. The addition of selected zircon sand to the industrial alumina powder base further enhances this strength, creating interlocking crystalline structures that distribute force efficiently throughout the material. When subjected to flexural stress, Zirconium SiC Brick typically exhibits strength values above 30 MPa, significantly higher than traditional fireclay or alumina bricks. This superior bending resistance is crucial in applications where thermal expansion and contraction could otherwise lead to cracking and failure. The high flexural strength also allows for more versatile design applications, as the bricks can span greater distances without intermediate support, potentially simplifying furnace construction and reducing installation costs for industrial facilities utilizing these advanced refractory materials.

Thermal Shock Resistance Properties

The thermal shock resistance of Zirconium SiC Brick represents one of its most valuable mechanical properties, especially in environments with rapid temperature fluctuations. This exceptional resistance stems from the material's unique composition, which includes zirconium dioxide (ZrO₂) and silicon carbide (SiC) in a carefully engineered matrix. When exposed to temperature changes that would cause conventional refractories to crack or spall, Zirconium SiC Brick maintains its structural integrity through several mechanisms. First, the high thermal conductivity of SiC (approximately 120 W/m·K) allows heat to dissipate rapidly throughout the brick, minimizing thermal gradients that could otherwise cause stress concentrations. Second, the coefficient of thermal expansion of the composite material is carefully balanced through precise formulation control, reducing internal stresses during heating and cooling cycles. Testing has shown that these bricks can withstand thousands of thermal cycles from ambient temperature to 1700°C without significant degradation in mechanical properties. This remarkable stability is particularly valuable in applications such as hot-blast stoves, where rapid temperature changes are inherent to the operation. Additionally, the thermal shock resistance enables Zirconium SiC Brick to perform exceptionally well in sliding rail applications in rolling furnaces, where contact with cooler materials could otherwise cause immediate thermal stress and potential failure.

Abrasion and Erosion Resistance Capabilities

The superior abrasion and erosion resistance of Zirconium SiC Brick stems from the inherent hardness of its constituent materials and their synergistic interaction. Silicon carbide, with a Mohs hardness of approximately 9.5, provides exceptional resistance to mechanical wear, while the zirconium compounds contribute to chemical stability in corrosive environments. When subjected to standard ASTM abrasion tests, these bricks typically demonstrate volume loss rates less than 5 cm³ per 50 cm², significantly outperforming conventional alumina-based refractories. This exceptional wear resistance makes Zirconium SiC Brick particularly valuable in applications involving particle impingement or sliding contact, such as in transfer chutes or areas exposed to high-velocity particulate flows. The erosion resistance extends to chemical attack as well, with these bricks showing remarkable stability against molten metals and aggressive slags. This resistance is attributed to the formation of passive layers on the brick surface that inhibit further reaction. For example, when in contact with iron-rich slags, the zirconium components form complex zirconate compounds that have extremely high melting points and low solubility in the slag. This protective mechanism allows Zirconium SiC Brick to maintain its dimensional accuracy and mechanical integrity even after extended exposure to these challenging conditions, resulting in significantly reduced maintenance requirements and extended service life for industrial equipment lined with these advanced refractory materials.

Performance Under Extreme Operating Conditions

High Temperature Mechanical Stability

Zirconium SiC Brick exhibits exceptional mechanical stability at temperatures that would cause conventional refractories to soften or fail. This remarkable performance is primarily attributed to the high melting points of its constituent materials, with silicon carbide maintaining stability up to approximately 2700°C and zirconium dioxide remaining solid until about 2700°C as well. However, the true challenge in refractory applications isn't simply withstanding high temperatures, but maintaining mechanical strength and dimensional stability under these conditions. Zirconium SiC Brick excels in this regard, with hot modulus of rupture (HMOR) testing demonstrating that these materials retain up to 70% of their room temperature strength even at 1500°C. This exceptional high-temperature stability results from the formation of secondary ceramic bonds during sintering that remain intact at elevated temperatures. Additionally, the inclusion of selected zircon sand in the formulation contributes to this stability through the formation of zircon silicates that resist grain boundary sliding. The practical implication of this thermal stability is that Zirconium SiC Brick can be relied upon in critical applications such as blast furnace linings, where failure could lead to catastrophic consequences. When used in the upper regions of glass kilns that don't directly contact molten glass, these bricks maintain their dimensional stability despite repeated heating and cooling cycles, ensuring consistent performance throughout the kiln's operational lifetime and minimizing maintenance requirements that would otherwise increase operational costs for glass manufacturers.

Creep Resistance Under Sustained Load

The exceptional creep resistance of Zirconium SiC Brick represents a critical mechanical property for applications involving sustained loads at high temperatures. Creep, the gradual deformation of materials under stress over time, can lead to catastrophic failures in refractory linings if not properly addressed through material selection. Standardized testing under conditions of 0.2 MPa load at 1500°C for 50 hours typically shows creep deformation of less than 0.5% for high-quality Zirconium SiC Brick, compared to 1-2% for conventional alumina refractories. This superior performance stems from several microstructural features. First, the silicon carbide component, with its strong covalent bonds, inherently resists dislocation movement that facilitates creep. Second, the zirconium additives form intergranular phases with high viscosity at elevated temperatures, effectively locking grains in place and preventing boundary sliding. The practical implications of this exceptional creep resistance are particularly evident in applications such as slide rails in rolling furnaces, where sustained mechanical loads combine with high temperatures. In these environments, Zirconium SiC Brick maintains its dimensional accuracy over extended periods, ensuring smooth operation of the production process and preventing the misalignment issues that would otherwise arise from creep deformation. This dimensional stability also contributes significantly to the overall energy efficiency of thermal processes by maintaining the intended geometry of the refractory lining, preventing unintended heat losses that would otherwise occur through deformed or compromised refractory structures.

Impact and Spalling Resistance Characteristics

The impact and spalling resistance of Zirconium SiC Brick stands as a testament to the material's exceptional mechanical durability in extreme operating conditions. Impact resistance is particularly crucial in applications where mechanical shocks are common, such as in tapping holes and iron runners where tool contact and material flow create repeated impact events. The composite microstructure of Zirconium SiC Brick provides effective crack-arresting mechanisms that prevent catastrophic failure under impact. When an impact creates a microcrack, its propagation is typically halted at phase boundaries between the silicon carbide and zirconium-rich regions, dissipating energy and preserving overall structural integrity. This characteristic allows these bricks to withstand the mechanical abuse common in metalworking environments. Spalling resistance—the ability to resist explosive fracture due to thermal stresses—is equally impressive in Zirconium SiC Brick. This property stems from the material's balanced thermal expansion characteristics and high thermal conductivity, which minimize the development of dangerous temperature gradients. Additionally, the microstructure contains engineered porosity that provides controlled space for thermal expansion, further enhancing spalling resistance. Testing has shown that high-quality Zirconium SiC Brick can withstand over 30 thermal cycles from room temperature to 1200°C with water quenching without significant spalling, whereas conventional refractories might fail after just 5-10 such cycles. This exceptional resistance to both mechanical impact and thermal spalling makes Zirconium SiC Brick particularly valuable in applications such as blast furnace tap-hole assemblies and hot-blast stoves, where both types of stress occur simultaneously and where failure would result in costly production interruptions and safety hazards.

Advanced Manufacturing Techniques and Material Science

Precision Formulation and Raw Material Selection

The exceptional mechanical properties of Zirconium SiC Brick begin with meticulous raw material selection and precision formulation, representing the foundation of its superior performance. TY Refractory employs a sophisticated material selection process, starting with industrial alumina powder of controlled particle size distribution to ensure optimal particle packing in the final product. This alumina base is then combined with carefully graded zircon sand, selected for its purity and consistent ZrO₂ content, typically between 65-67%. Silicon carbide, the third critical component, undergoes rigorous quality control to ensure particle shape, size distribution, and chemical purity meet exacting standards. This attention to raw material quality directly influences the mechanical properties, as impurities can create weak points in the microstructure that compromise strength and durability. The formulation process itself involves sophisticated computational modeling to optimize the ratio of components for specific application requirements. For blast furnace applications, for instance, the silicon carbide content might be increased to enhance thermal conductivity, while applications requiring maximum corrosion resistance might feature higher zirconium content. Advanced mixing techniques, including high-energy attrition milling, ensure homogeneous distribution of components throughout the brick body, eliminating potential weak points that could initiate failure under mechanical stress. This precision approach to formulation enables TY Refractory to tailor the mechanical properties of Zirconium SiC Brick to specific customer requirements while maintaining the exceptional baseline performance that has made these products industry standards for demanding applications in steel manufacturing, glass production, and other high-temperature industrial processes.

Sintering Process and Microstructural Development

The sintering process represents a critical manufacturing stage that directly influences the mechanical properties of Zirconium SiC Brick through controlled microstructural development. TY Refractory employs advanced sintering techniques that go beyond conventional firing to create optimized phase relationships between the zirconium compounds and silicon carbide components. The process begins with precisely controlled temperature ramps, typically at rates below 50°C per hour during critical transformation stages, allowing for the gradual removal of binders and the formation of preliminary ceramic bonds without creating internal stresses that could compromise mechanical integrity. As temperatures approach 1600-1700°C in specially designed tunnel kilns, complex solid-state reactions occur between the alumina, zircon sand, and silicon carbide components. These reactions form new phases, including mullite and zirconium silicates, which create strong intergranular bonds that significantly enhance mechanical strength. The formation of these phases is carefully monitored through advanced kiln instrumentation that tracks temperature uniformity throughout the brick, ensuring consistent quality. The controlled cooling phase of the sintering process is equally important, as it allows for stress relaxation and prevents the formation of microcracks that would otherwise reduce mechanical strength. The resulting microstructure features a complex interlocking arrangement of silicon carbide grains bonded by zirconium-rich phases, creating multiple barriers to crack propagation that enhance both compressive and flexural strength. This sophisticated sintering approach results in Zirconium SiC Brick with exceptional fire resistance, capable of withstanding temperatures up to 1700°C while maintaining structural integrity. The dimensional accuracy achieved through precise sintering control also facilitates installation in complex refractory linings, reducing installation time and ensuring proper performance in demanding applications such as blast furnaces and hot-blast stoves.

Quality Control Testing Methodologies

The superior mechanical properties of Zirconium SiC Brick are verified and maintained through comprehensive quality control testing methodologies that exceed industry standards. TY Refractory, with its state-of-the-art R&D center and testing facilities, implements a multi-stage testing protocol that evaluates each batch of bricks against rigorous performance criteria. Cold crushing strength (CCS) testing, performed according to ASTM C133 standards, verifies that the bricks meet or exceed the specified compressive strength targets, typically above 100 MPa for premium-grade products. Modulus of rupture (MOR) testing both at room temperature and at elevated temperatures (HMOR) confirms the flexural strength capabilities critical for applications involving thermal cycling. Beyond these standard tests, TY Refractory employs advanced analytical techniques including X-ray diffraction (XRD) analysis to verify phase composition and scanning electron microscopy (SEM) to examine microstructural features that influence mechanical performance. Thermal shock resistance is quantitatively assessed through repeated cycling between extreme temperatures, with subsequent measurement of retained mechanical properties. Porosity and bulk density measurements provide insight into the brick's resistance to penetration by molten materials, while creep testing under load at elevated temperatures confirms the material's dimensional stability in service conditions. These comprehensive testing methodologies ensure that each Zirconium SiC Brick leaving the factory meets exacting specifications for mechanical properties, providing customers with reliable performance in the most demanding industrial applications. The documented test results, maintained in a traceable quality database, allow for continuous improvement of manufacturing processes while providing customers with confidence in the consistent performance of TY Refractory's Zirconium SiC Brick products across multiple supply batches and over extended service periods.

Conclusion

Zirconium SiC Brick stands as a pinnacle of refractory engineering, offering exceptional mechanical properties including high compressive strength, superior thermal shock resistance, and remarkable wear resistance. These characteristics make it an ideal choice for demanding industrial applications where conventional materials would fail. As industry requirements continue to evolve, TY Refractory remains at the forefront of innovation, consistently delivering high-performance solutions that enhance operational efficiency and reduce maintenance costs.

With 38 years of experience in the refractory industry, we offer comprehensive "design-construction-maintenance" lifecycle services, with our technical team available 24/7 to respond to customer needs. Our integration of information and industrial management systems ensures full-process quality traceability. Want to learn how our Zirconium SiC Bricks can revolutionize your industrial operations? Contact our expert team today for customized solutions tailored to your specific operational challenges. Email us at baiqiying@tianyunc.com to discuss your requirements and experience the TY Refractory difference!
